T40SP Side Pod

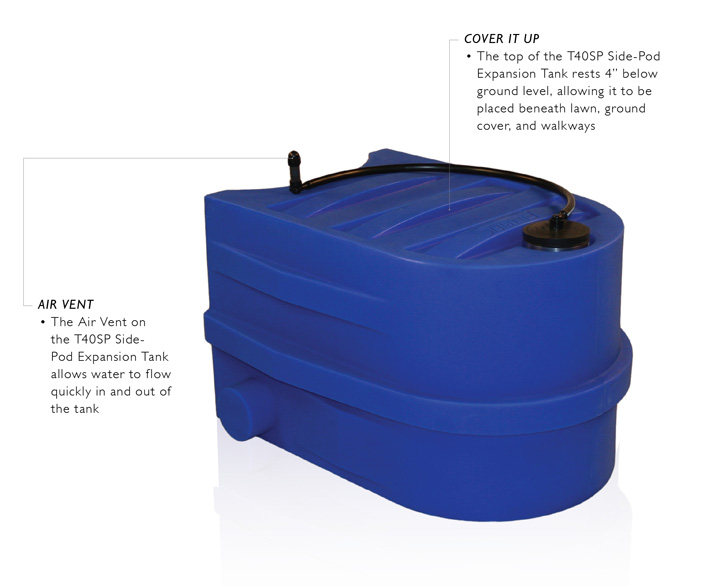

Filtrific® engineering allows a precise fit between the T40SP Side-PodTM Expansion Tank and both the T40F and the T75F Filter Tanks. Connect multiple T40SP Side-Pod Expansion Tanks together for systems requiring increased water reserves in confined spaces.

The 40SP connects to either the T40F or T75F and provides additional water storage.

Download
CAD
Details















Model: T40SP



Features:

Side-nesting Expansion Tank connects to either side of the T40F or T75F Filter Tank
Adds an additional 40 gallons of water-in-motion reserve when connected to the T75F Filter Tank
Only requires a two foot deep hole
A 4” connection on both sides for connecting to a Filter Tank or additional Side-Pod Tanks
Includes vented cap



Combinations

Placed side to side or front to back, the versatility of the T40SP Side-Pod Expansion Tank makes it easy to create the most efficient system regardless of space or circumstances.

Connection Packs

Included in Vanishing & Hybri-Pond™ Packs
Not included when purchasing a Side-Pod individually

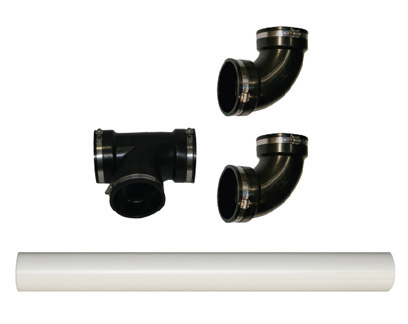

T40SP Side-Pod Connection Package
(for 1 side pod)

Model: RC-44LL



Includes:
2 – 4” Flex 90
1 – 4” x 20” PVC Pipe

T40SP Side-Pod Connection Package
(for 2 side pods)

Model: RC-44LTL



Includes:
1 – 4” Flex Tee
2 – 4” Flex 90
1 – 4” x 31” PVC Pipe

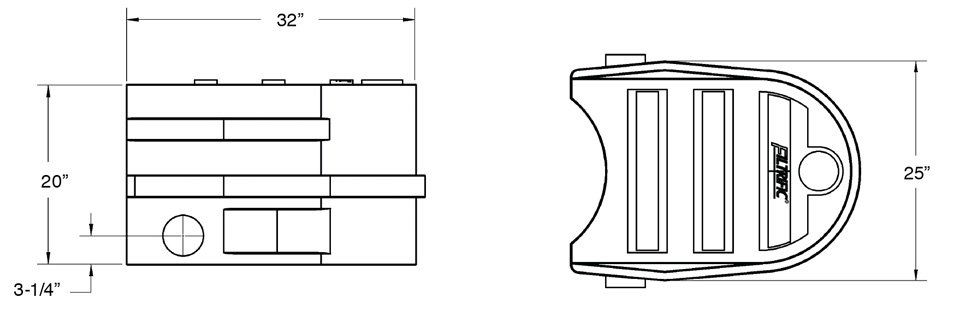

T40SP Expansion Tank Dimensions
