Pond-Packs

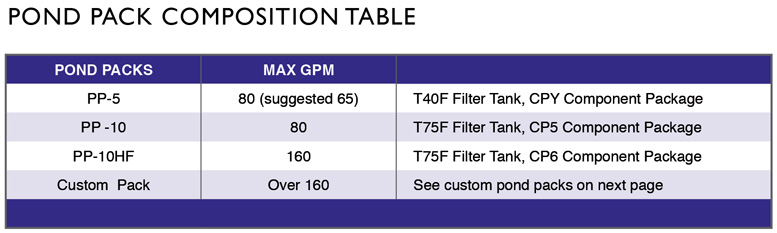

What’s in a Pond-Pack:

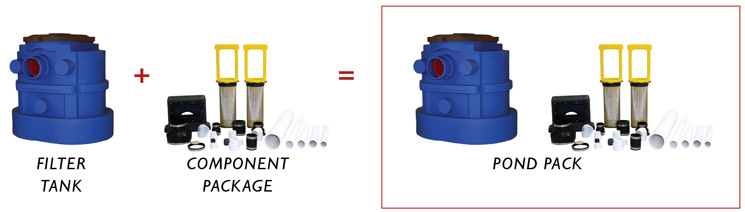

Component Packages are paired with a Filter Tank to create a Pond Pack. Pond Packs provide all the Filtrific® components and connection fittings needed for a Filtrific® Pond System. Pump, liner, flex tubing, and Waterfall Starter are not included to allow for professional design flexibility.

Component Packages

(for use with Pond-Packs)

CPY Component Package

For use with the T40F Filter Tank

GPM: 80 (suggested 65)

Includes:
1 – 10 Mesh Filter Basket, E10-40
1 – Door Skimmer, S44D
1 – Pump Discharge Kit, D01
(2” discharge for 1”, 1-1⁄4”, & 1-1⁄2”
pump threads)
1 – Overflow Kit, F23-Q
(includes 2” x 2-1/2’ pipe)
1 – Intake Pipe, 4” x 2-1⁄2’

CP5 Component Package

For use with the T75F Filter Tank

GPM: 80

Includes:
2 – 10 Mesh Filter Baskets, E10-75
1 – Door Skimmer, S64D
1 – Pump Discharge Kit, D21-Q
(2” discharge for 1”, 1-1⁄4”, 1-1⁄2” & 2”
pump threads)
1 – RC-42, 4 x 2 Flex-Coupling
1 – Overflow Kit, F23-Q
(includes 2” x 2-1/2’ pipe)
1 – Intake Pipe, 4” x 2-1⁄2’

CP6 Component Package

For use with the T75F Filter Tank

GPM: 160

Includes:
2 – 10 Mesh Filter Baskets, E10-75

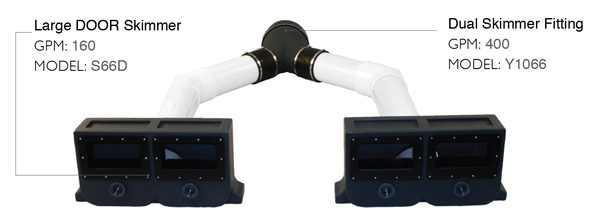

1 – Door Skimmer, S66D
1 – Pump Discharge Kit, D24-Q
(3” discharge for 2” and 3” pump threads)
1 – Overflow Kit, F23-Q
(includes 2” x 2-1/2” pipe)
1 – Intake Pipe, 6” x 2-1⁄2’

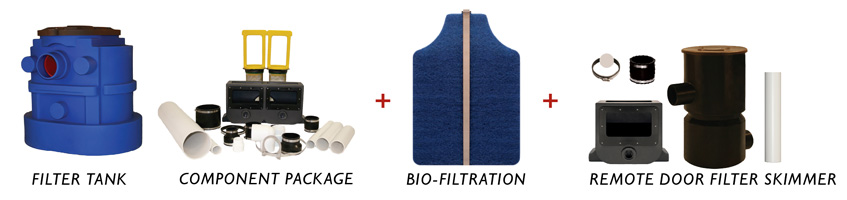

For Custom Pond Packs:

For Traditional Pond applications flowing over 160GPM, the intake capacity of the Filter Tank can be increased using Remote Filter Skimmers (80GPM per unit) see page 32.

Add bio-filtration for fish as needed.
